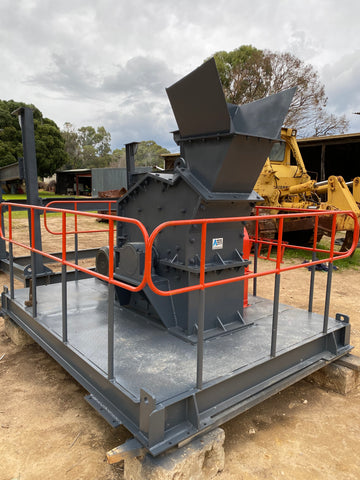

IC120 Impact Crusher

  • Impact Crusher IC120


    IC Range is a low cost, high efficiency fine crusher. It is widely applied in crushing of all kinds of ores, cement, and refractory materials.

    IC crusher makes use of impact energy to crush materials. When it is working, the rotor spins at high speed under the drive of the electric motor.

    The materials enter in through the feed opening and strike the hammer/impact heads on the rotor at high speed.

    The broken materials are impacted again and again between the impact plate and the hammer/impact heads before the finished materials is allowed to exit through the bottom screen plate.

    Feed Opening Size: 1200mm x 450mm

    Feed Size: <180mm

    Discharge Size: <5mm (85%)

    Capacity: 100 - 110 T/Hr

    Motor Power: 132kw

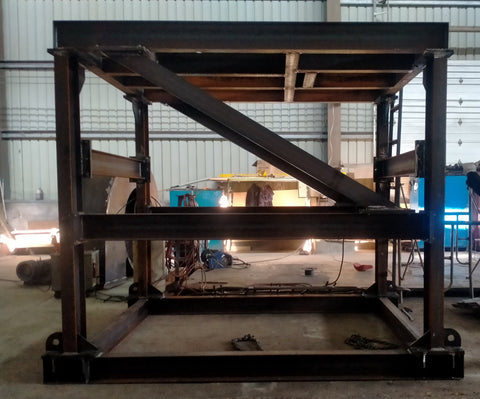

    This price includes the electric motor and crusher, ask us for a quote to build a custom frame to suit your needs.
