Trommel Wash Plant

Sale
$185,000.00

TWP-50 Pro

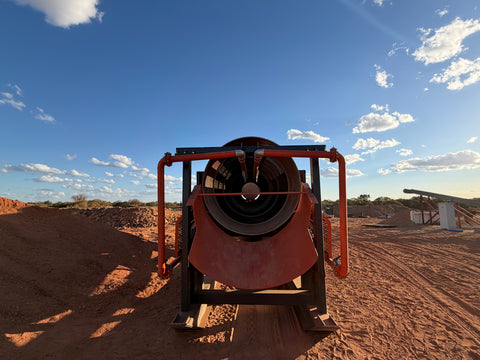

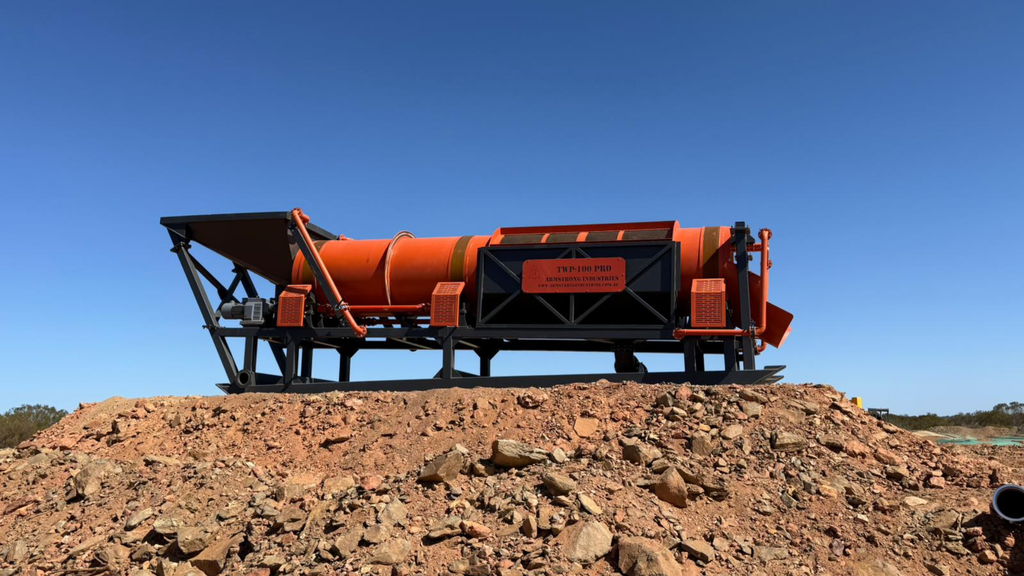

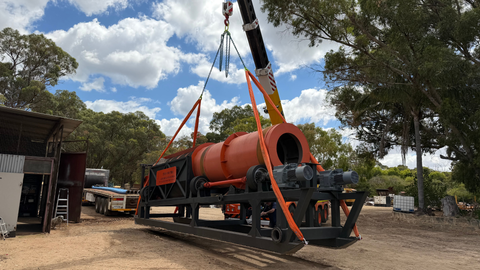

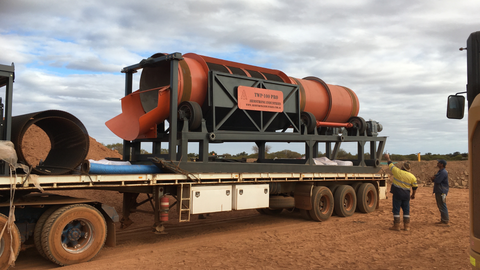

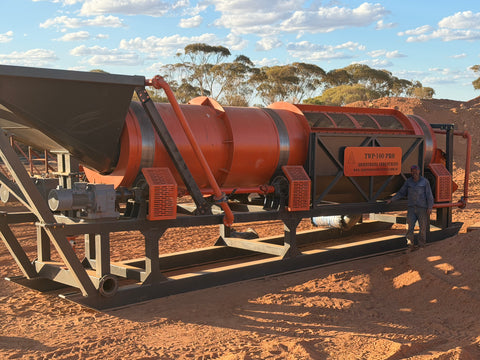

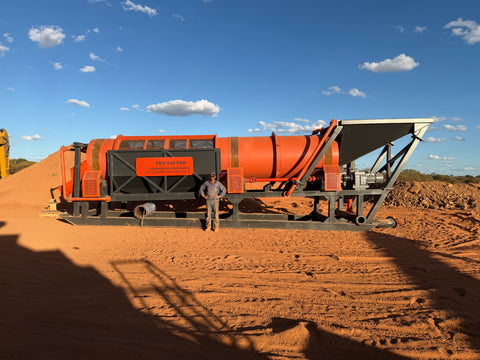

TWP-50 Pro gold trommel wash plant is a large-scale, high-capacity mining equipment designed for efficient gold recovery from placer deposits, such as riverbeds, alluvial soils, or other gold-bearing materials. This type of wash plant is capable of processing 100-150 tons of material per hour, making it ideal for commercial mining operations, large-scale contractors, or mining companies with significant gold-bearing material to process.

Please email or call for lead times.

Price also includes Sluice, Diesel water pump and spares.

Technical Specifications

Model : TWP-50 Pro
Capacity : 50 - 100 tons per hour (depending on material type and conditions)
Power Requirement : 30-60 kW (depending on configuration)
Water Requirement : 150-250 m³/h
Dimensions (L x W x H):11800 * 2300 * 3500 mm (approx.)
Weight : 12000 kg (depending on configuration)
Material : High-grade steel (wear-resistant and durable)
Trommel Diameter : 1.2 meters
Trommel Length : 7.2 meters
Screen Mesh Size : Customizable (e.g., 10 mm, 15mm)
Rotation Speed : 8–12 RPM (adjustable)

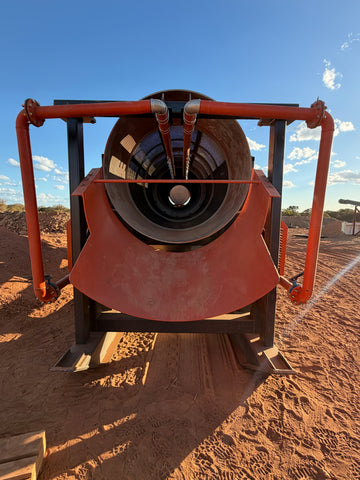

Spray Bars : 6–8 bars with high-pressure nozzles for efficient washing
Drive System : Electric motor

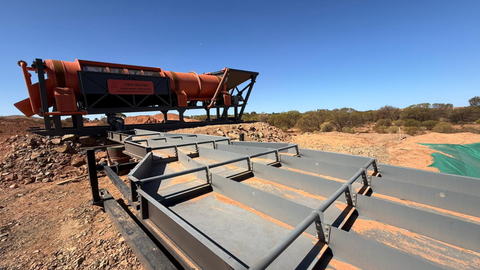

Sluice box length : 6 meters or 12 meters (customer preference)
Sluice box width :1.0 meter or 2.0 meters (customer preference)
Riffle Design : Hungarian riffles, expanded metal riffles or dream mat
Matting : Rubber matting, miner's moss, or dream mat for gold trapping
Sluice angle adjustability : Can be adjusted for optimal recovery
Water Pump : 6 inch centrifugal pump or submersible pump
Flow Rate : 200 m³/h
Hose Diameter : 6 inches
Hose Type : PVC lay-flat hose or rubber hose
Electric Motor :Trommel 7.5 kW x 2 + Water pump 37 kW (standard)
Diesel Engine : Optional for remote locations
Diesel Generator : Available as an add on for off grid operations
Warranty : 1-year limited warranty
Technical Support : Available for setup, operation, and troubleshooting
Spare Parts : Readily available for quick replacements
