TWP-100 Pro

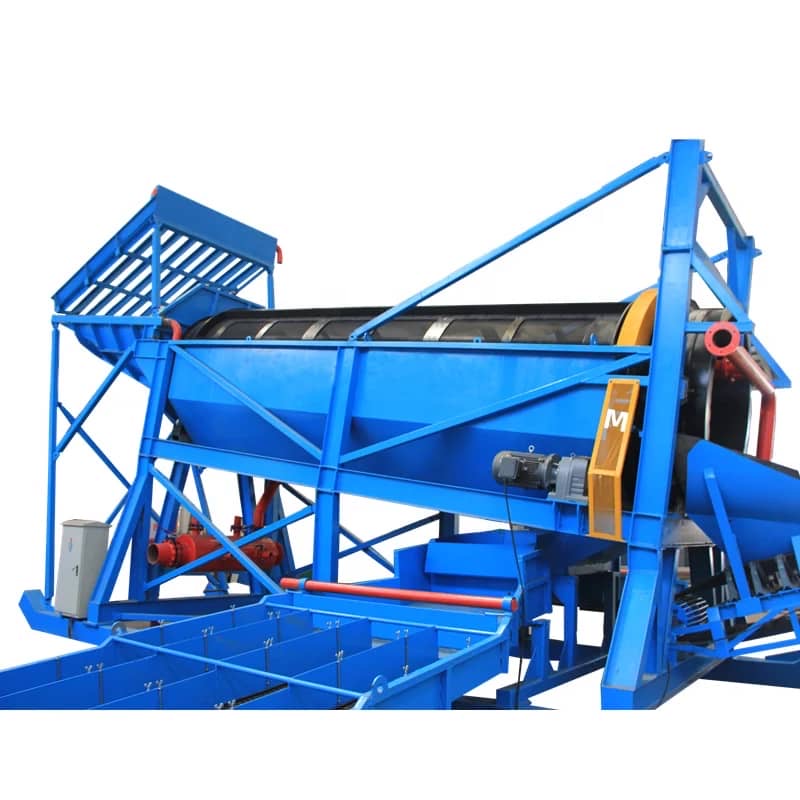

TWP-100 Pro gold trommel wash plant is a large-scale, high-capacity mining equipment designed for efficient gold recovery from placer deposits, such as riverbeds, alluvial soils, or other gold-bearing materials. This type of wash plant is capable of processing 100-150 tons of material per hour, making it ideal for commercial mining operations, large-scale contractors, or mining companies with significant gold-bearing material to process.
Please email or call for lead times.
Price also includes Sluice, Diesel water pump and spares.
Technical Specifications
- Model : TWP-100 Pro
- Capacity : 100–150 tons per hour (depending on material type and conditions)
- Power Requirement : 60–100 kW (depending on configuration)
- Water Requirement : 200–400 m³/h
- Dimensions (L x W x H):11800 * 2300 * 3500 mm (approx.)
- Weight : 17,000–22,000 kg (depending on configuration)
- Material : High-grade steel (wear-resistant and durable)
- Trommel Diameter : 1.5 meters
- Trommel Length : 8.5 meters
- Screen Mesh Size:Customizable (e.g., 10 mm, 20 mm, or 30 mm)
- Rotation Speed : 8–12 RPM (adjustable)
- Spray Bars : 6–8 bars with high-pressure nozzles for efficient washing
- Drive System : Electric motor
- Sluice box length : 6 meters or 12 meters (customer preference)
- Sluice box width :1.0 meter or 2.0 meters (customer preference)
- Riffle Design : Hungarian riffles, expanded metal riffles or dream mat
- Matting : Rubber matting, miner's moss, or dream mat for gold trapping
- Sluice angle adjustability : Can be adjusted for optimal recovery
- Water Pump : 8 inch centrifugal pump or submersible pump
- Flow Rate : 200–350 m³/h
- Water Recycling : Optional water recycling system available
- Hose Diameter : 6–8 inches
- Hose Type : PVC lay-flat hose or rubber hose
- Electric Motor :Trommel 30 kW + Water pump 37 kW (standard)
- Diesel Engine : Optional for remote locations
- Diesel Generator : Available as an add on for off grid operations
- Warranty : 1-year limited warranty
- Technical Support : Available for setup, operation, and troubleshooting
- Spare Parts : Readily available for quick replacements
